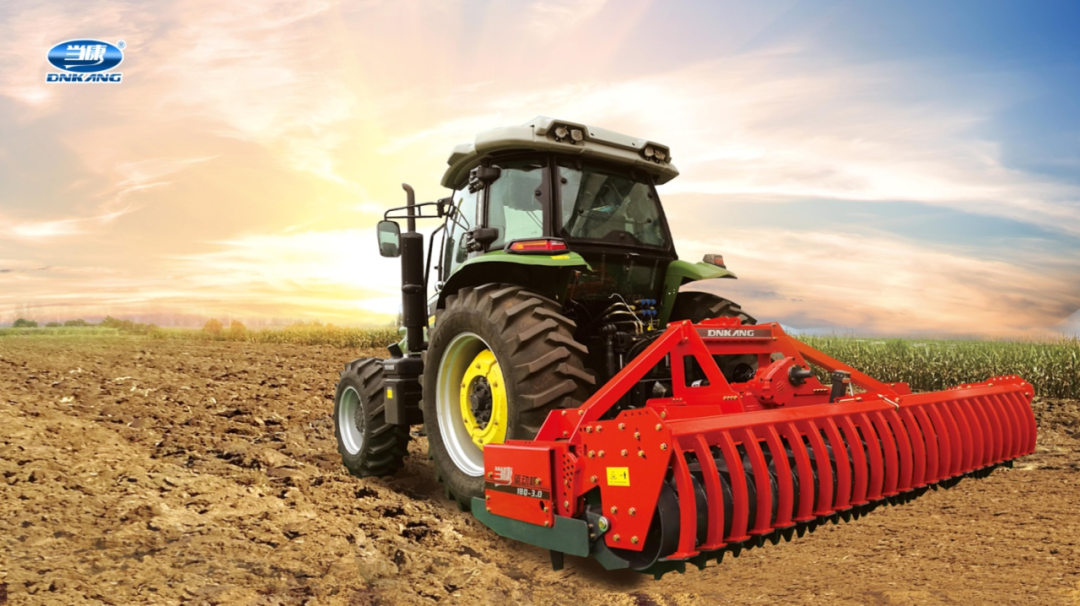

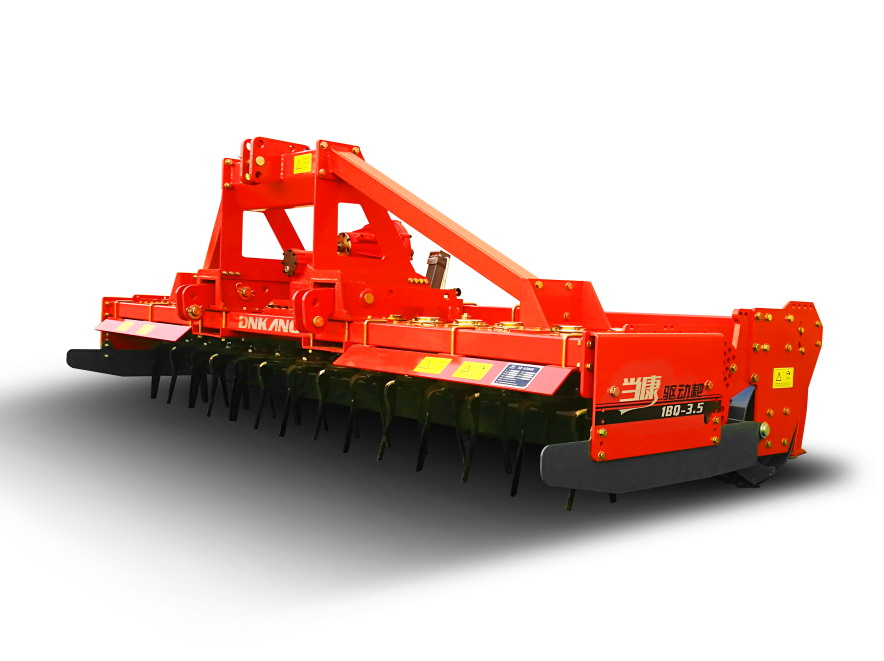

Drive harrow

The Kang Power‑Driven Harrow is a specialized soil‑conditioning implement that delivers excellent soil‑breaking performance, ensures high post‑harrowing surface smoothness, effectively conserves soil moisture, preserves the natural soil structure and layering, and promotes uniform seedling emergence. This power‑driven harrow is particularly effective at breaking up large clods and leveling furrows that often remain after deep tillage. In terms of seedbed preparation, it stands as the premier equipment available today, producing soil conditions that meet key agronomic criteria—level, even, loose, finely crumbled, clean, and adequately moist—thereby providing optimal growing conditions for seed germination.

Main features of the Kang drive rake:

1. It boasts strong soil‑breaking capability; even the hard clods left after deep plowing with a large plow can be effectively broken up in a single pass with a power‑driven harrow, creating optimal conditions for sowing while saving time, labor, and costs.

2. Excellent land‑leveling performance: the drive harrow is equipped with a reinforced leveling plate that delivers remarkable results, particularly in addressing furrows created after deep tillage, producing uniformly level ground and ensuring consistent planting depths in subsequent operations.

3. Excellent compaction performance: the drive harrow is equipped with a heavy-duty compaction roller, which creates a soil profile characterized by a firm top layer and a loose subsoil after operation. This helps retain soil moisture, prevent wind erosion, enhance drought resistance and frost protection, and promote favorable emergence of subsequent crops.

4. Maintain the soil’s layered structure: after deep tillage, straw has already been incorporated into the soil, and the harrow’s horizontal rotating design combined with its blade‑shaped configuration makes it difficult to turn the straw back to the surface, thereby promoting its decomposition.

5. The machine boasts high reliability, is resistant to grass entanglement and blade breakage, and can sustain continuous, high‑intensity operation over extended periods, thereby reducing the need for frequent daily cleaning and blade changes and easing operator workload.

The Kang Series power‑driven tiller, developed by Shandong Dangkang Agricultural Equipment Co., Ltd., is specifically engineered to meet domestic soil conditions. It boasts a well‑designed structure, high reliability, rapid blade‑changing capabilities, and overload protection, making it an essential solution for farmers seeking consistently high and stable yields.

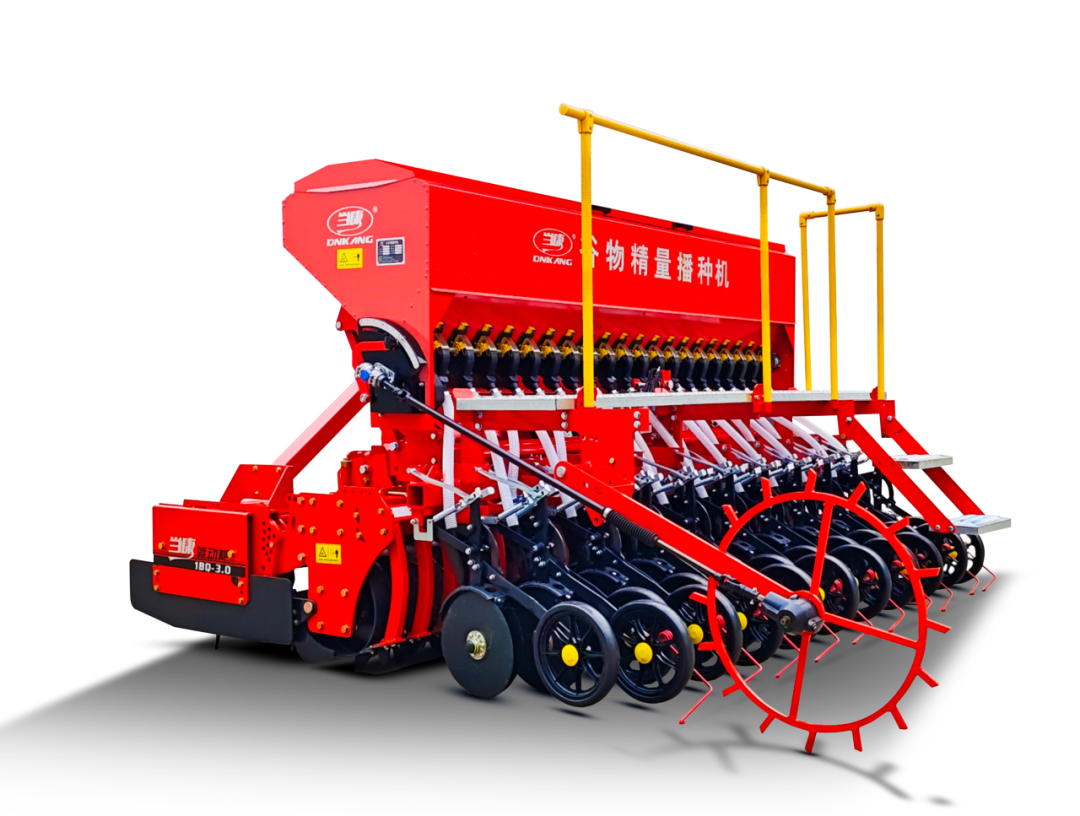

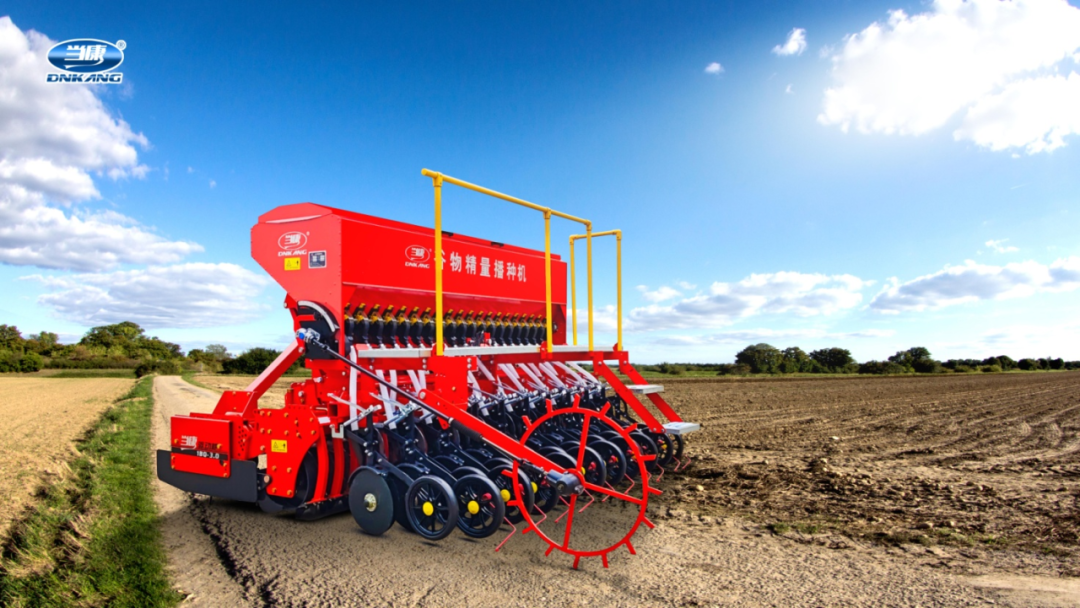

The Kangfu Precision Seeder for Small-Grain Crops is a specialized, combined precision seeder developed by Shandong Dangkang Agricultural Equipment Co., Ltd. It builds upon domestic and international seeders designed for wheat, oats, rapeseed, alfalfa, and other small‑grain crops, with a focus on sowing these specific types of seeds.

The main technical features of the rehabilitation-type precision grain seeder are:

1. High seeding accuracy: with a mechanical or electronically controlled transmission system, seed placement is precise and highly reliable, ensuring uniform seeding rates across a range of tractor speeds.

2. The seeding rate can be continuously adjusted within the range of 0.4 to 60 jin per mu, meeting customers’ precise sowing requirements for small-seeded crops such as wheat, oats, rapeseed, millet, alfalfa, barley, and astragalus.

3. A four-link contour‑following mechanism that adapts to varying terrains, ensuring consistent seeding depth and high emergence rates; each individual unit can be adjusted—either collectively or independently—to regulate soil pressure.

4. Single-row seeding with compaction ensures that each seed row is thoroughly compacted, enhancing soil moisture retention and guaranteeing uniform emergence rates.

5. Integrated operation with a rotary tiller allows direct seeding on the turned-over soil, thereby enhancing operational efficiency and ensuring consistent seeding performance. Compared with conventional tillage and separate seeding operations, this approach significantly reduces seed consumption and boosts yield.

6. Integrated double‑row seeding operations reduce repeated soil compaction, significantly boost operational efficiency, lower labor and machinery costs, and enhance customer profitability.

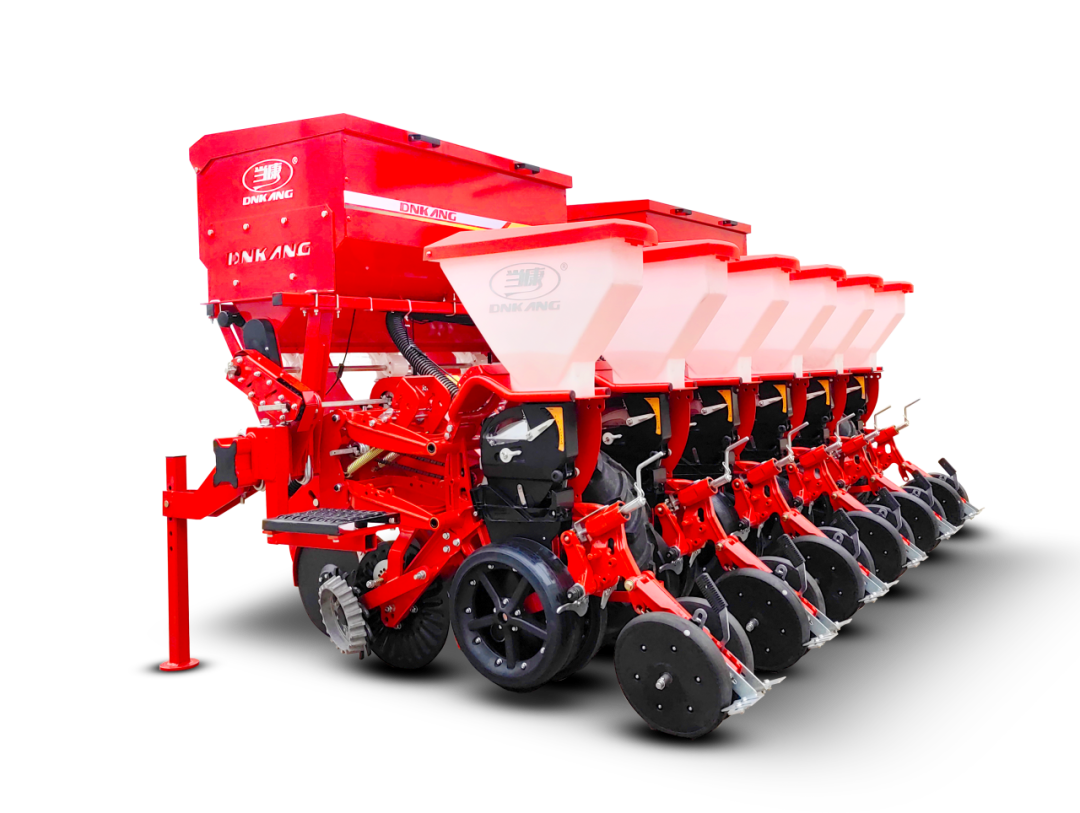

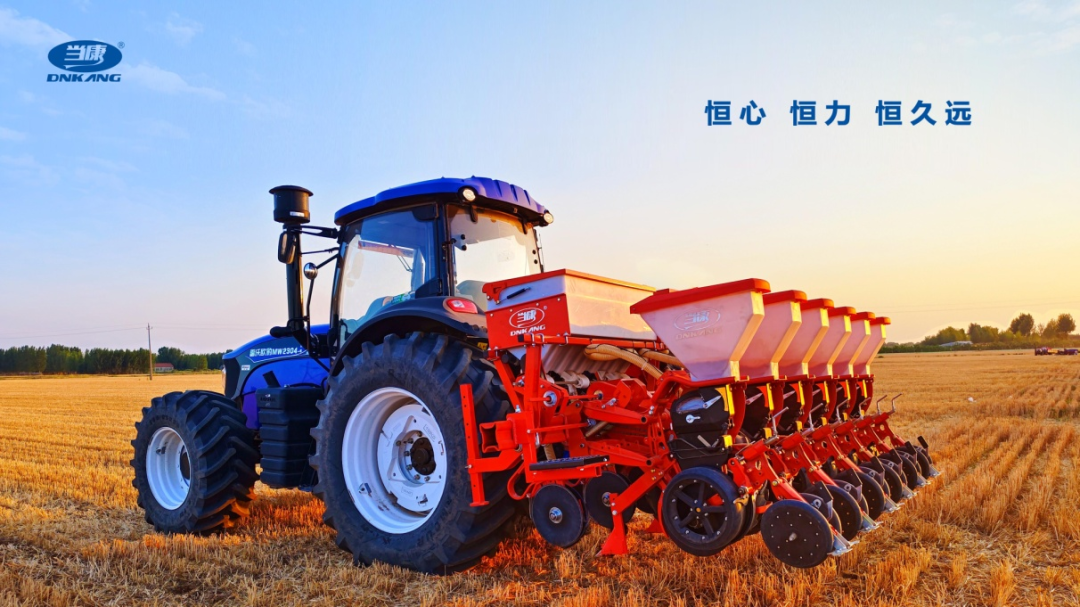

The Kangqi suction-type no-till planter, featuring a single‑unit Gran‑type design, can operate at high speeds on stubble fields and other standing‑crop residues, with operating speeds reaching 8–12 km/h. It offers adjustable row and plant spacing to meet the requirements of corn–soybean intercropping, and allows for variable seeding depth and compaction. Equipped with an enlarged 900‑liter fertilizer hopper, it is capable of planting corn, soybeans, sorghum, and other crops, making it a next‑generation replacement for conventional seeders.

Main features of the Kangqi suction-type no-till seeder

1. Equipped with a Gran-type single-unit design, operating at 8–12 km/h, it ensures high-precision row spacing.

2. It adopts a cross‑beam structure, offering high reliability and convenient, quick row‑spacing adjustments.

3. Equipped with a high-speed fan, offering large airflow and high reliability.

4. Dual-sided depth‑limiting wheels with a floating linkage ensure effective control of planting depth even on uneven terrain, meeting the varying depth requirements of different crops and changing soil moisture conditions.

5. Equipped with a jumbo trenching disc, it ensures smooth trenching even in hard, stubble‑covered fields, meeting the needs of trenching in uncultivated soils such as wheat stubble fields.

6. V‑shaped compaction roller, with multi‑stage adjustment to meet the compaction requirements of varying soil moisture conditions and crops.

7. Real-time monitoring of seed fertilizer, counting, and leak‑detection alerts.
